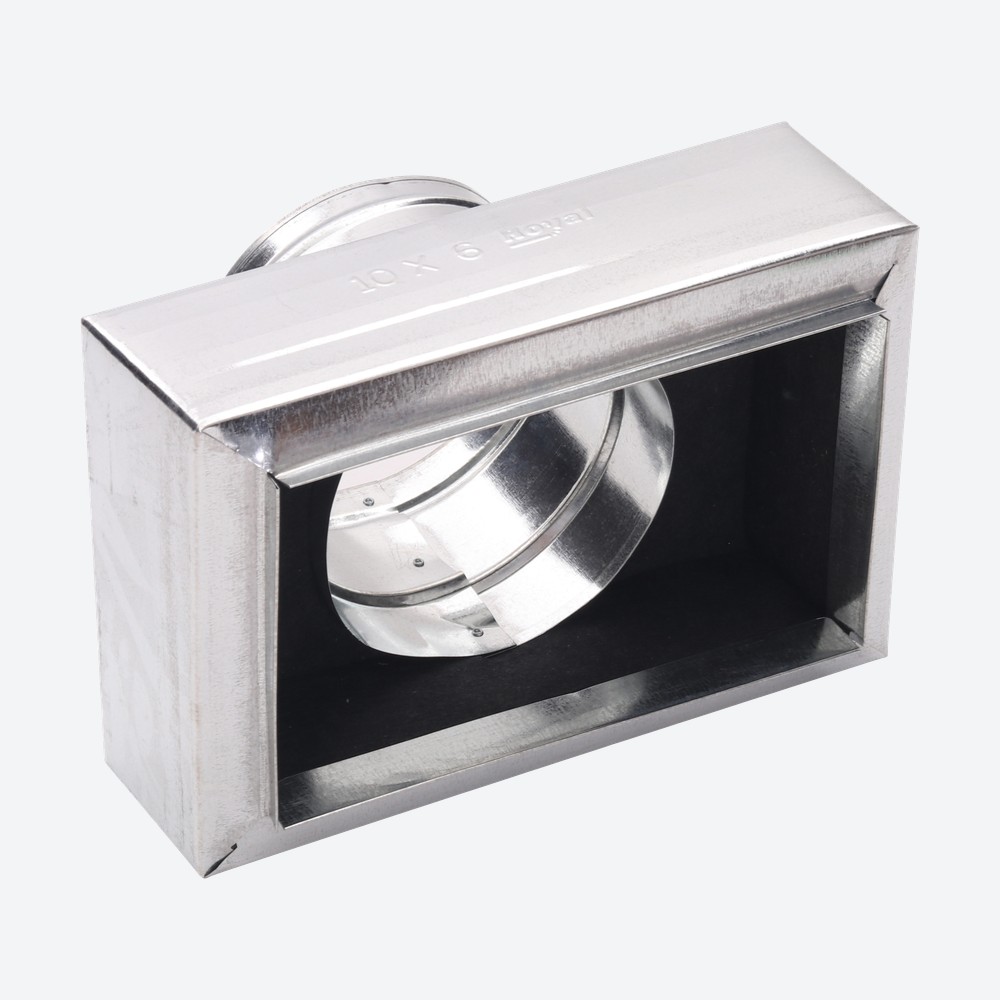

#504 Insulated Box

Categories: Insulated Boxes

Product Specifications

3 ½” Tall

Material
ASTM-A653 CS Type B Galvanized Steel, G-30 Coating LFQ Chemical Treatment

Gauge
30GA

Assembly
Ceiling boot assembled with C-115 2/16″ zinc coated steel rivets and has a rectangular opening. The collar is 3½” tall roll formed 30GA steel with 1/4″ roll formed beading.

Insulation
Knauf Equipment Liner M with ECOSE® Technology Available Thickness: R4 – 1″, R6 – 1½”, & R8 – 2″

ASTM C 1071, Type I, Flexible (replaces obsolete Federal Specification HH-I-545B.) NFPA 90A/90B, ASTM C 665/1617 Temperature Range (ASTM C 411), Microbial Growth (ASTM C1338, G21)

Option
504D – with damper 504R6DBT – DB top without collar Available in 26GA upon request

SKU	Description	Box Qty.
5041066	504 10 X 6-6 INS. BOX – R4	12
5041267	504 12 X 6-7 INS. BOX – R4	12
5041468	504 14 X 6-8 INS. BOX – R4	12
504845	504 8 X 4-5 INS. BOX – R4	12
504844	504 8 X 4-4 INS. BOX – R4	12
504R61267	504R6 12 X 6-7 INS BOX – R6	12
504R61066	504R6 10 X 6-6 INS BOX – R6	12
504R6844	504R6 8 X 4-4 INS BOX – R6	12
504R6845	504R6 8 X 4-5 INS BOX – R6	12
504R61468	504R6 14 X 6-8 INS. BOX – R6	12
504R61268	504R6 12 X 6-8 INS BOX – R6	12
504R81468	504R8 14 X 6-8 INS. BOX – R8	12
504R8845	504R8 8 X 4-5 INS BOX – R8	12
504R81066	504R8 10 X 6-6 INS BOX – R8	12
504R81267	504R8 12 X 6-7 INS BOX – R8	12
504R81268	504R8 12 X 6-8 INS BOX – R8	12
