#501E & #501S Insulated Box

#501E & #501S Insulated Box

#501E & #501S Insulated Box

Categories:

Product Specifications

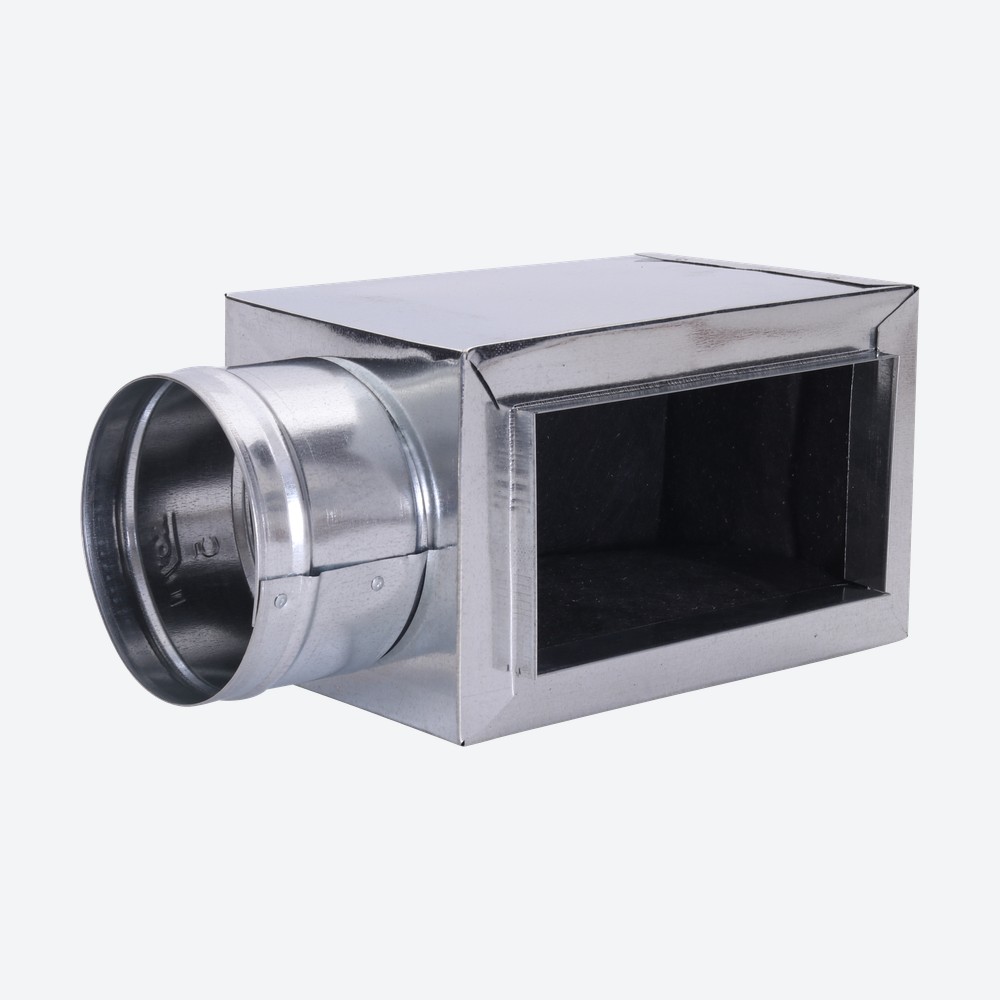

#501E (End outlet) and #501S (Side outlet)

Material
ASTM-A653 CS Type B Galvanized Steel, G-30 Coating LFQ Chemical Treatment

Assembly
Ceiling boot assembled with C-115 2/16″ zinc coated steel rivets and has a rectangular opening with a 1/2″ drywall flange. The collar is 3 1/2″ tall roll formed 30GA steel with 1/4″ bead for flex attachment. Collar has 1/8″ finished hem.

Insulation
Knauf Equipment Liner M with ECOSE® Technology Available Thickness: R4 – 1″, R6 – 1½”, & R8 – 2″

ASTM C 1071, Type I, Flexible (replaces obsolete Federal Specification HH-I-545B.) NFPA 90A/90B, ASTM C 665/1617 Temperature Range (ASTM C 411), Microbial Growth (ASTM C1338, G21)

Spec Sheet
Product SKUs

Related Products

Search

Hit enter to search or ESC to close

Your shopping cart

Cart

#501E & #501S Insulated Box

Product SKUs

SKU Description Box Qty.
501S1045 501S 10 X 4-5 SIDE OUTLET INS BOX 12
501E844 501E 8 X 4-4 END OUTLET INS BOX 12
501S1066 501S 10 X 6-6 SIDE OUTLET INS BOX 12
501S1266 501S 12 X 6-6 SIDE OUTLET INS BOX 12
501E1266 501E 12 X 6-6 END OUTLET INS BOX 12
501E1267 501E 12 X 6-7 END OUTLET INS BOX 6
501S1268 501S 12 X 6-8 SIDE OUTLET INS BOX 6
501S1067 501S 10 X 6-7 SIDE OUTLET INS BOX 12
501S1068 501S 10 X 6-8 SIDE OUTLET INS BOX 6
501S1267 501S 12 X 6-7 SIDE OUTLET INS BOX 6
501E845 501E 8 X 4-5 END OUTLET INS BOX 12
501S844 501S 8 X 4-4 SIDE OUTLET INS BOX 12
501E1066 501E 10 X 6-6 END OUTLET INS BOX 12
501S845 501S 8 X 4-5 SIDE OUTLET INS BOX 12
501S1468 501S 14 X 6-8 SIDE OUTLET INS BOX 6
501SR610107 501SR6 10 X 10-7 SIDE OUTLET INS BOX – R6 1
501SR610108 501SR6 10 X 10-8 SIDE OUTLET INS BOX – R6 1
501SR610109 501SR6 10 X 10-9 SIDE OUTLET INS BOX – R6 1
501SR61066 501SR6 10 X 6-6 SIDE OUTLET INS BOX – R6 12
501SR61067 501SR6 10 X 6-7 SIDE OUTLET INS BOX – R6 12
501SR612127 501SR6 12 X 12-7 SIDE OUTLET INS BOX – R6 1
501SR612128 501SR6 12 X 12-8 SIDE OUTLET INS BOX – R6 1
501SR612129 501SR6 12 X 12-9 SIDE OUTLET INS BOX – R6 1
501SR61266 501SR6 12 X 6-6 SIDE OUTLET INS BOX – R6 12
501SR61267 501SR6 12 X 6-7 SIDE OUTLET INS BOX – R6 12
501SR61268 501SR6 12 X 6-8 SIDE OUTLET INS BOX – R6 6
501SR61288 501SR6 12 X 8-8 SIDE OUTLET INS BOX – R6 6
501SR61468 501SR6 14 X 6-8 SIDE OUTLET INS BOX – R6 6
501SR6664 501SR6 6 X 6-4 SIDE OUTLET INS BOX – R6 1
501SR6666 501SR6 6 X 6-6 SIDE OUTLET INS BOX – R6 1
501SR6886 501SR6 8 X 8-6 SIDE OUTLET INS BOX – R6 1
501SR6887 501SR6 8 X 8-7 SIDE OUTLET INS BOX – R6 6
501S664NI 501S 6 X 6-4 SIDE OUTLET INS BOX NO INSULATION 1
501S664 501S 6 X 6-4 SIDE OUTLET INS BOX 1
501S665 501S 6 X 6-5 SIDE OUTLET INS BOX 1
501S666 501S 6 X 6-6 SIDE OUTLET INS BOX 1
501SR6845 501SR6 8 X 4-5 SIDE OUTLET INS BOX – R6 12
501S12128 501S 12 X 12-8 SIDE OUTLET INS BOX 1
501S121210 501S 12 X 12-10 SIDE OUTLET INS BOX 1
501S886 501S 8 X 8-6 SIDE OUTLET INS BOX 1
501S1086 501S 10 X 8-6 SIDE OUTLET INS BOX 1
501S1065 501S 10 X 6-5 SIDE OUTLET INS BOX 12
501SR61489 501SR6 14 X 8-9 SIDE OUTLET INS BOX – R6 4
501SR6888 501SR6 8 X 8-8 SIDE OUTLET INS BOX – R6 1
501SR61065 501SR6 10 X 6-5 SIDE OUTLET INS BOX – R6 12
501SR8845 501SR8 8 X 4-5 SIDE OUTLET INS BOX – R8 12
501SR81066 501SR8 10 X 6-6 SIDE OUTLET INS BOX – R8 12
501SR81266 501SR8 12 X 6-6 SIDE OUTLET INS BOX – R8 12
501SR81267 501SR8 12 X 6-7 SIDE OUTLET INS BOX – R8 6
501SR81468 501SR8 14 X 6-8 SIDE OUTLET INS BOX – R8 6
501SR8S845 501SR8S 8 X 4-5 SIDE OUT INS BOX SEALED – R8 12
501SR8S1066 501SR8S 10 X 6-6 SIDE OUT INS BOX SEALED – R8 12
501SR8S1267 501SR8S 12 X 6-7 SIDE OUT INS BOX SEALED – R8 6
501SR8S1468 501SR8S 14 X 6-8 SIDE OUT INS BOX SEALED – R8 6
501S1467 501S 14 X 6-7 SIDE OUTLET INS BOX 6
501S1046 501S 10 X 4-6 SIDE OUTLET INS BOX 10
501SR614899 501SR6 14 X 8-9 SIDE OUT INS BOX 9″ TALL – R6 4
501SR610889 501SR6 10 X 8-8 SIDE OUT INS BOX 9″ TALL – R6 4
501SR6121299 501SR6 12 X 12-9 SIDE OUT INS BOX 9″ TALL – R6 6
501S10108 501S 10 X 10-8 SIDE OUTLET INS BOX 1
501S845BB 501SBB 8 X 4-5 SIDE OUTLET INS BOX 1
501S1066BB 501SBB 10 X 6-6 SIDE OUTLET INS BOX 1
501S1268BB 501SBB 12 X 6-8 SIDE OUTLET INS BOX 1
501SR6146811 501SR6 14 X 6-8 SIDE OUT INS BOX 11″ TALL – R6 4
501SR61212911 501SR6 12 X 12-9 SIDE OUT INS BOX 11″ TALL – R6 6
501SR6126711 501SR6 12 X 6-7 SIDE OUT INS BOX 11″ TALL – R6 12
501SR6126711BB 501SR6BB 12 X 6-7 SIDE OUT INS BOX 11″ TALL – R6 1
501SR61267BB 501SR6BB 12 X 6-7 SIDE OUTLET INS BOX – R6 1
501SR6844 501SR6 8 X 4-4 SIDE OUTLET INS BOX – R6 12
501SR810107 501SR8 10 X 10-7 SIDE OUTLET INS BOX – R8 12
501SR810108 501SR8 10 X 10-8 SIDE OUTLET INS BOX – R8 12
501SR810107BB 501SR8BB 10 X 10-7 SIDE OUTLET INS BOX – R8 1
501SR810108BB 501SR8BB 10 X 10-8 SIDE OUTLET INS BOX – R8 1
501SR61066BB 501SR6BB 10 X 6-6 SIDE OUTLET INS BOX – R6 1
501S1068BB 501SBB 10 X 6-8 SIDE OUTLET INS BOX 1
501S1267BB 501SBB 12 X 6-7 SIDE OUTLET INS BOX 1
501SR6845SF 501SR6 8X4-5 SIDE OUT INS BOX W/ SNAP FLG 12
501SR61066SF 501SR6 10X6-6 SIDE OUT INS BOX W/ SNAP FLG 12
501SR61267SF 501SR6 12X6-7 SIDE OUT INS BOX W/ SNAP FLG 12
501SR61268SF 501SR6 12X6-8 SIDE OUT INS BOX W/ SNAP FLG 6
501SR61289SF 501SR6 12X8-9 SIDE OUT INS BOX W/ SNAP FLG 6
501SR61088SF 501SR6 10X8-8 SIDE OUT INS BOX W/ SNAP FLG 1
501S665SF 501S 6X6-5 SIDE OUT INS BOX 9″ TALL W/ SNAP FLG 12
501S886SF 501S 8X8-6 SIDE OUT INS BOX 9″ TALL W/ SNAP FLG 6
501S887SF 501S 8X8-7 SIDE OUT INS BOX 9″ TALL W/ SNAP FLG 6
501S664SF 501S 6X6-4 SIDE OUT INS BOX 9″ TALL W/ SNAP FLG 1
501S10108SF 501S 10X10-8 SIDE OUT INS BOX 9″TALL W/SNAP FLG 1
501S1468BB 501SBB 14 X 6-8 SIDE OUTLET INS BOX 1
501SR6844BB 501SR6BB 8 X 4-4 SIDE OUTLET INS BOX – R6 1
501SR6S10107 501SR6S 10X10-7 SIDE OUTLET INS BOX SEALED R6 1
501SR6S10109 501SR6S 10X10-9 SIDE OUTLET INS BOX SEALED R6 1
501SR6S1066 501SR6S 10X6-6 SIDE OUTLET INS BOX SEALED R6 12
501SR6S12129 501SR6S 12X12-9 SIDE OUTLET INS BOX SEALED R6 1
501SR6S886 501SR6S 8X8-6 SIDE OUTLET INS BOX SEALED R6 1
501SR6S887 501SR6S 8X8-7 SIDE OUTLET INS BOX SEALED R6 6
501SR6S10108 501SR6S 10X10-8 SIDE OUTLET INS BOX SEALED R6 1
501SR6S888 501SR6S 8X8-8 SIDE OUTLET INS BOX SEALED R6 6
501SR81065 501SR8 10 X 6-5 SIDE OUTLET INS BOX – R8 12
501SR81067 501SR8 10 X 6-7 SIDE OUTLET INS BOX – R8 12
501SR6S665 501SR6S 6 X 6-5 SIDE OUTLET INS BOX SEALED R6 1
501SR6S12128 501SR6S 12X12-8 SIDE OUTLET INS BOX SEALED R6 1
501SR6665 501SR6 6 X 6-5 SIDE OUTLET INS BOX – R6 1
501SR6S664 501SR6S 6 X 6-4 SIDE OUTLET INS BOX SEALED R6 1
501SR6S12127 501SR6S 12X12-7 SIDE OUTLET INS BOX SEALED R6 1
501SR6S1268 501SR6 12 X 6-8 SIDE OUTLET INS BOX SEALED R6 6
501SR6S1288 501SR6 12 X 8-8 SIDE OUTLET INS BOX SEALED R6 6
501SR6S1266 501SR6 12 X 6-6 SIDE OUTLET INS BOX SEALED R6 12
501SR6S1267 501SR6 12 X 6-7 SIDE OUTLET INS BOX SEALED R6 6
501S844BB 501SBB 8 X 4-4 SIDE OUTLET INS BOX 1
501SR6S666 501SR6S 6 X 6-6 SIDE OUTLET INS BOX SEALED R6 1
501SR610108SF 501SR6 10X10-8 SIDE OUT INS BOX W/ SNAP FLG 1
501S866 501S 8 X 6-6 SIDE OUTLET INS BOX 1
501SR6S1067 501SR6S 10X6-7 SIDE OUTLET INS BOX SEALED R6 12
