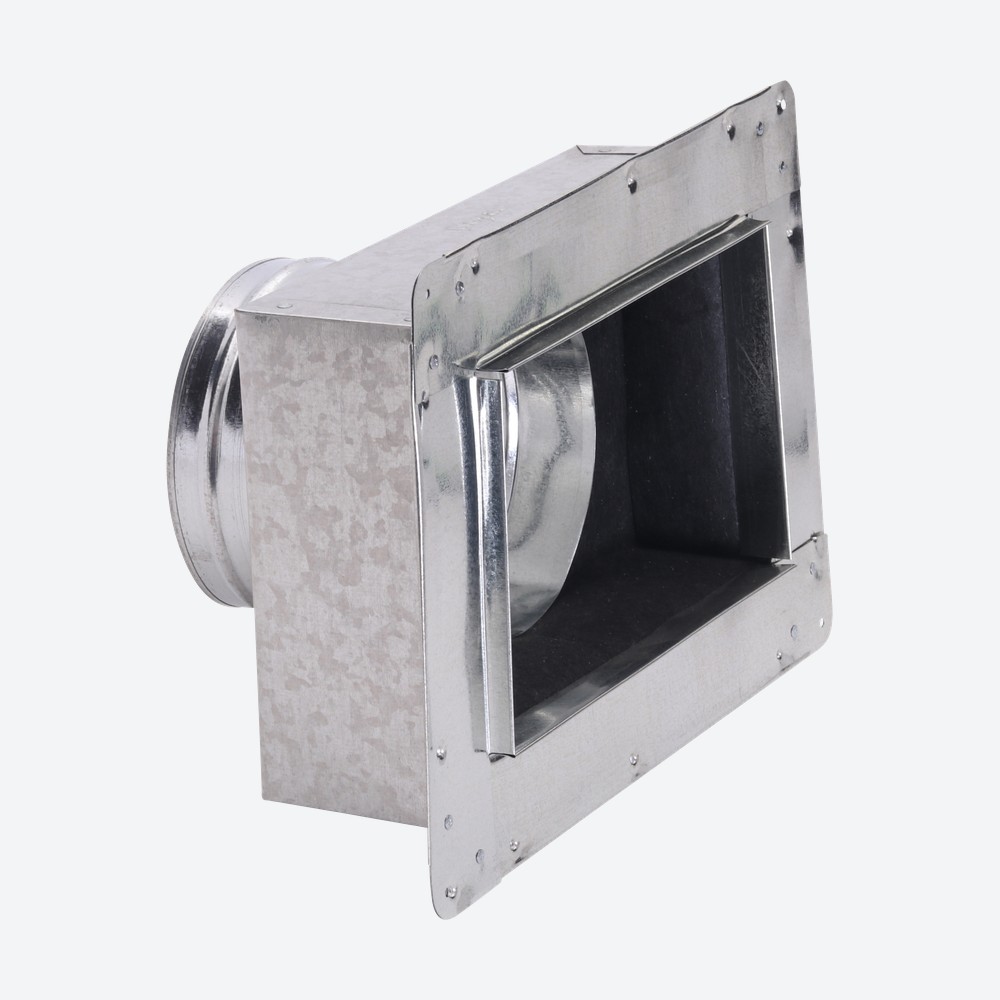

#505 Insulated Box

Categories: Insulated Boxes

Product Specifications

3 ½” Tall with Bottom Flanged

Material
ASTM-A653 CS Type B Galvanized Steel, G-30 Coating LFQ Chemical Treatment

Gauge
30GA

Assembly
Ceiling Boot assembled with C-115 2/16″ zinc coated steel rivets, has a rectangular opening with a 1″ 90 deg outboard flange and 1/2″ drywall flange. The collar is 3-3½” tall roll formed 30GA steel with 1/4″ roll formed beading.

Insulation
Johns Manville Duct Liner PM 2″ Fiberglass Duct Liner (R8)

Operating temperature (max.) – ASTM C411 250°F (121°C) Air velocity (max.) – ASTM C1071 6,000 fpm (30.5 m/sec) Fungi resistance – ASTM C1338 Does not breed or promote Fungi resistance – ASTM G21 No growth

ASTM C1071, Type I • ICC Compliant • California Title 24 • ASHRAE 62 • MEA 353-93-M • SMACNA Application Standards for Duct Liners • NAIMA Fibrous Glass Duct Liner Installation Standard • Canada: CGSB 51-GP-11M and CAN/CGSB 51.11

SKU	Description	Box Qty.
5051046	505 10 X 4-6 INS. BOX – R4	12
5051064	505 10 X 6-4 INS. BOX – R4	12
5051065	505 10 X 6-5 INS. BOX – R4	12
5051066	505 10 X 6-6 INS. BOX – R4	12
5051067	505 10 X 6-7 INS. BOX – R4	12
5051266	505 12 X 6-6 INS. BOX – R4	12
5051267	505 12 X 6-7 INS. BOX – R4	12
5051268	505 12 X 6-8 INS. BOX – R4	12
5051468	505 14 X 6-8 INS. BOX – R4	12
505844	505 8 X 4-4 INS. BOX – R4	12
505845	505 8 X 4-5 INS. BOX – R4	12
505R61065	505R6 10 X 6-5 INS BOX	12
505R61066	505R6 10 X 6-6 INS BOX	12
505R61266	505R6 12 X 6-6 INS BOX	12
505R61267	505R6 12 X 6-7 INS BOX	12
505R61468	505R6 14 X 6-8 INS BOX	8
505R61488	505R6 14 X 8-8 INS BOX	8
505R6844	505R6 8 X 4-4 INS BOX	12
505R6845	505R6 8 X 4-5 INS BOX	12
505RD1267	505RD 12 X 6-7 INS CEIL RAD DAMPER BOOT	12
505RD845	505RD 8 X 4-5 INS CEIL RAD DAMPER BOOT	12
505RD1067	505RD 10 X 6-7 INS CEIL RAD DAMPER BOOT	12
505RD1268	505RD 12 X 6-8 INS CEIL RAD DAMPER BOOT	12
505R61067	505R6 10 X 6-7 INS BOX	12
5051045	505 10 X 4-5 INS. BOX – R4	12
505RD1468	505RD 14 X 6-8 INS CEIL RAD DAMPER BOOT	8
505R6G844	505R6G 8 X 4-4 INS BOX W/ GASKET	12
505R6G1065	505R6G 10 X 6-5 INS BOX W/ GASKET	12
505R6G1066	505R6G 10 X 6-6 INS BOX W/ GASKET	12
505R6G1488	505R6G 14 X 8-8 INS BOX W/ GASKET	8
505R6G1267	505R6G 12 X 6-7 INS BOX W/ GASKET	12
505R6G1266	505R6G 12 X 6-6 INS BOX W/ GASKET	12
505R6G1288	505R6G 12 X 8-8 INS BOX W/ GASKET	10
505R8845	505R8 8 X 4-5 INS BOX – R8	12
505R81066	505R8 10 X 6-6 INS BOX – R8	12
505R81064	505R8 10 X 6-4 INS BOX – R8	12
505R81067	505R8 10 X 6-7 INS BOX – R8	12
505R81268	505R8 12 X 6-8 INS BOX – R8	12
505R81044	505R8 10 X 4-4 INS BOX – R8	12
505R6G1287	505R6G 12 X 8-7 INS BOX W/ GASKET	10
505R6G12128	505R6G 12 X 12-8 INS BOX W/ GASKET	6
505R6G12129	505R6G 12 X 12-9 INS BOX W/ GASKET	6
505R81047	505R8 10 X 4-7 INS BOX – R8	12
505R81268S	505R8 12 X 6-8 INS BOX R8 – SPECIAL	12
505RD8451	505RD 8 X 4-5 INS CEIL RAD DMP 1″ DRYWALL	12
505RD14681	505RD 14 X 6-8 INS CEIL RAD DMP 1″ DRYWALL	8
505R81068S	505R8 10 X 6-8 INS BOX R8 – SPECIAL	12
505RD12671	505RD 12 X 6-7 INS CEIL RAD DMP 1″ DRYWALL	12
505R6G845	505R6G 8 X 4-5 INS BOX W/ GASKET	12
505R6G1468	505R6G 14 X 6-8 INS BOX W/ GASKET	8
