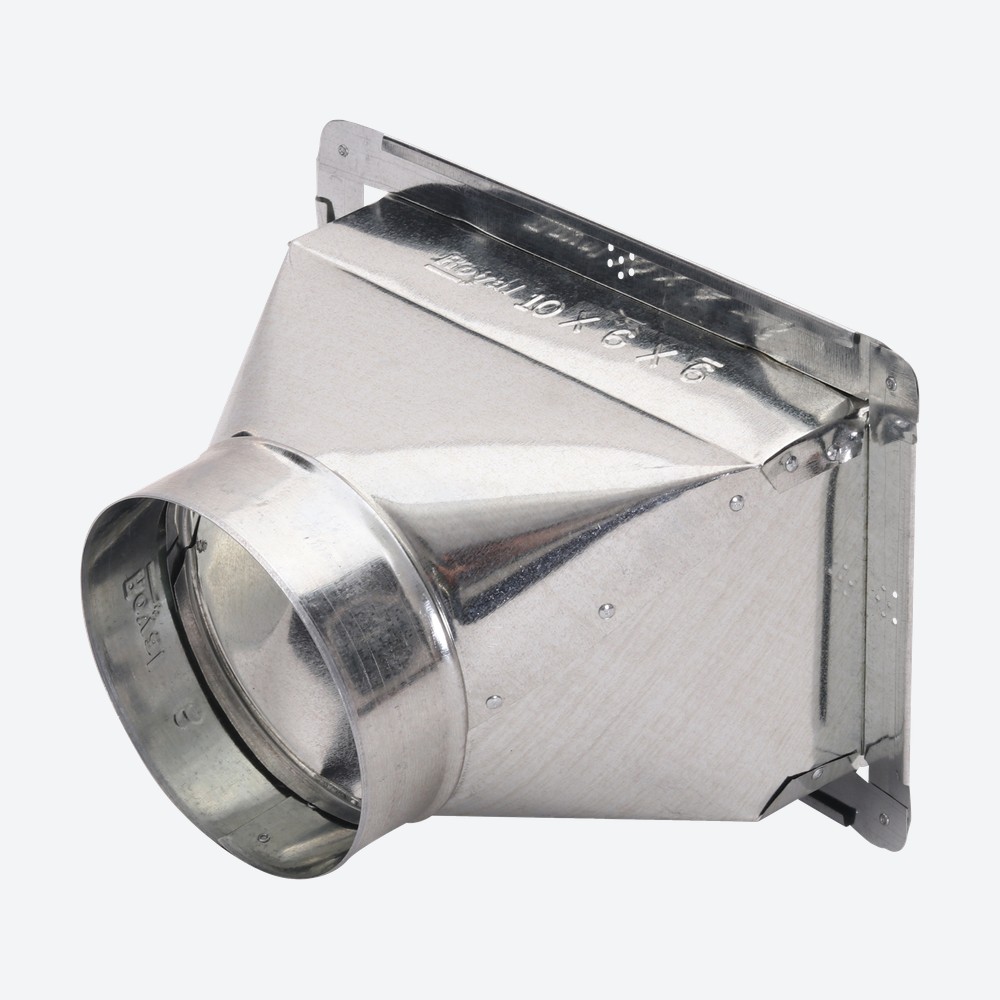

#241F Straight Ceiling Boot

#241F Straight Ceiling Boot

Product Specifications

Material
ASTM-A653 CS Type B Galvanized Steel, 30GA G-30 Coating LFQ Chemical Treatment ******Also Available in 28GA, 26GA and 24GA

Assembly
Assembled w/ C-115 2/16 zinc coated steel rivets

Features
241: A 1/8″ Hem on both collar and register openings. A Royal plaster frame may be used to hang the boot in a ceiling mount.

241F: An 1″ Outboard flange around the perimeter of the register opening with a 5/8″ drywall edge. Royal boot rails may be used to hang the boot in a ceiling mount.

Related Products

#241F Straight Ceiling Boot

Product SKUs

SKU Description Box Qty.
241F10108 241F 10 X 10 X 8 FLA BOOT 12
241F121212 241F 12 X 12 X 12 FLA BOOT 8
241F4104 241F 4 X 10 X 4 FLA BOOT 12
241F4105 241F 4 X 10 X 5 FLA BOOT 12
241F4106 241F 4 X 10 X 6 FLA BOOT 12
241F4127 241F 4 X 12 X 7 FLA BOOT 12
241F4128 241F 4 X 12 X 8 FLA BOOT 12
241F6106 241F 6 X 10 X 6 FLA BOOT 12
241F6126 241F 6 X 12 X 6 FLA BOOT 12
241F6127 241F 6 X 12 X 7 FLA BOOT 12
241F6128 241F 6 X 12 X 8 FLA BOOT 12
241F6148 241F 6 X 14 X 8 FLA BOOT 12
241F6104 241F 6 X 10 X 4 FLA BOOT 12
241F485 241F 4 X 8 X 5 FLA BOOT 12
241FD6106 241FD 6 X 10 X 6 FLA BOOT W/ DAMPER 12
241FD484 241FD 4 X 8 X 4 FLA BOOT W/ DAMPER 12
241F121210 241F 12 X 12 X 10 FLA BOOT 12
241F141412 241F 14 X 14 X 12 FLA BOOT 12
241F8108 241F 8 X 10 X 8 FLA BOOT 12
241FD6127 241FD 6 X 12 X 7 FLA BOOT W/ DAMPER 12
241FD6126 241FD 6 X 12 X 6 FLA BOOT W/ DAMPER 12
241F8107 241F 8 X 10 X 7 FLA BOOT 12
