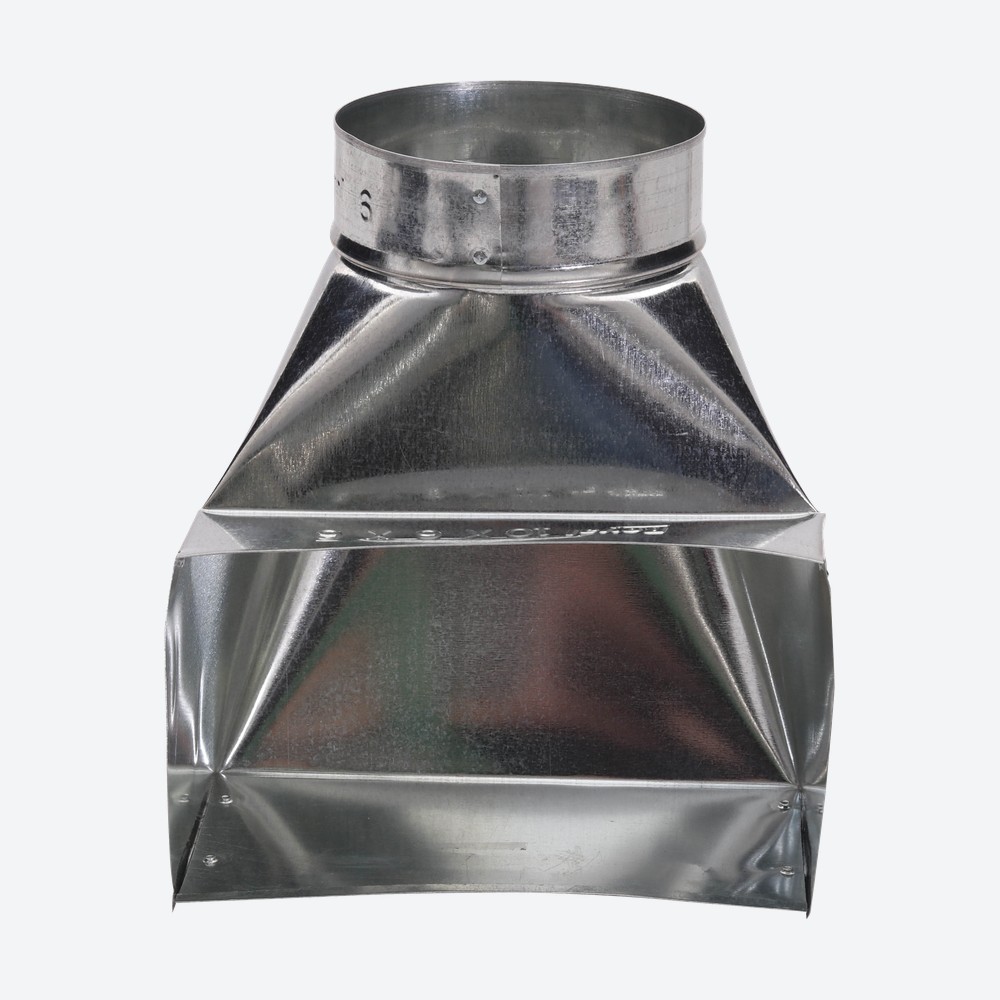

#243 90° Register Boot

Categories: Floor Register Boots

Product Specifications

Material
ASTM-A653 CS Type B Galvanized Steel, 30GA G-30 Coating LFQ Chemical Treatment

Assembly
Assembled with C-115 2/16 zinc coated steel rivets

Features
243: An 1/8″ hem on both collar and register openings. A Royal plaster frame may be used to hang the boot in a ceiling mount.

243F: A 1″ flange around the perimeter of the register opening with a 5/8″ drywall edge. Royal boot rails may be used to hang the boot in a ceiling mount.

Related Products

#244 End Register Boot

Floor Register Boots

#244R or #244L 90° Left or Right Register Boot

Floor Register Boots

#243 90° Register Boot

Floor Register Boots

#241 Straight Back Register Boot

Floor Register Boots

#244 End Register Boot

Floor Register Boots

#244R or #244L 90° Left or Right Register Boot

Floor Register Boots

#243 90° Register Boot

Floor Register Boots

#241 Straight Back Register Boot

Floor Register Boots

#243 90° Register Boot

Product SKUs

SKU	Description	Box Qty.
2432126	243 2 X 12 X 6 90 BOOT	12
2434104	243 4 X 10 X 4 90 BOOT	24
2434105	243 4 X 10 X 5 90 BOOT	24
2434106	243 4 X 10 X 6 90 BOOT	12
2434107	243 4 X 10 X 7 90 BOOT	12
2434108	243 4 X 10 X 8 90 BOOT	12
2434126	243 4 X 12 X 6 90 BOOT	12
2434127	243 4 X 12 X 7 90 BOOT	12
2434128	243 4 X 12 X 8 90 BOOT	12
2434148	243 4 X 14 X 8 90 BOOT	12
243485	243 4 X 8 X 5 90 BOOT	24
2436106	243 6 X 10 X 6 90 BOOT	12
2436107	243 6 X 10 X 7 90 BOOT	12
2436108	243 6 X 10 X 8 90 BOOT	12
2436126	243 6 X 12 X 6 90 BOOT	12
2436127	243 6 X 12 X 7 90 BOOT	12
2436128	243 6 X 12 X 8 90 BOOT	12
2436148	243 6 X 14 X 8 90 BOOT	12
243F4104	243F 4X10X4 FLG 90 BOOT	12
243F4106	243F 4X10X6 FLG 90 BOOT	12
243F6106	243F 6X10X6 FLG 90 BOOT	12
243F6127	243F 6X12X7 FLG 90 BOOT	12
243F6148	243F 6X14X8 FLG 90 BOOT	10
243FRD485	243FRD 4X8X5 90DEG FLG CEIL RAD BOOT	12
243FRD6106	243FRD 6X10X6 90DEG FLG CEIL RAD BOOT	10
243FRD6127	243FRD 6X12X7 90DEG FLG CEIL RAD BOOT	8
243FRD6128	243FRD 6X12X8 90DEG FLG CEIL RAD BOOT	6
243FRD6148	243FRD 6X14X8 90DEG FLG CEIL RAD BOOT	6
243FRD6107	243FRD 6X10X7 90DEG FLG CEIL RAD BOOT	8
243FRD4105	243FRD 4X10X5 90DEG FLG CEIL RAD BOOT	12
243F6104	243F 6X10X4 FLG 90 BOOT	12
243FRD4106	243FRD 4X10X6 90DEG FLG CEIL RAD BOOT	12
243FRD4851	243FRD 4X8X5 90 FLG CEIL RAD BOOT W/1″ LIP	12
243FRD61481	243FRD 6X14X8 90 FLG CEIL RAD BOOT W/ 1″ LIP	6
243FRD4104	243FRD 4X10X4 90DEG FLG CEIL RAD BOOT	12
243F485	243F 4X8X5 FLG 90 BOOT	12
243FRD484	243FRD 4X8X4 90DEG FLG CEIL RAD BOOT	12
243FRD61061	243FRD 6X10X6 90 FLG CEIL RAD BOOT W/ 1″ LIP	8
243FRD61271	243FRD 6X12X7 90 FLG CEIL RAD BOOT W/ 1″ LIP	8
243FRD61281	243FRD 6X12X8 90 FLG CEIL RAD BOOT W/ 1″ LIP	6
243FRD41041	243FRD 4X10X4 90 FLG CEIL RAD BOOT W/ 1″ LIP	12
243FRD41051	243FRD 4X10X5 90 FLG CEIL RAD BOOT W/ 1″ LIP	12
243FRD41061	243FRD 4X10X6 90 FLG CEIL RAD BOOT W/ 1″ LIP	12
243FRD4841	243FRD 4X8X4 90 FLG CEIL RAD BOOT W/ 1″ LIP	12
