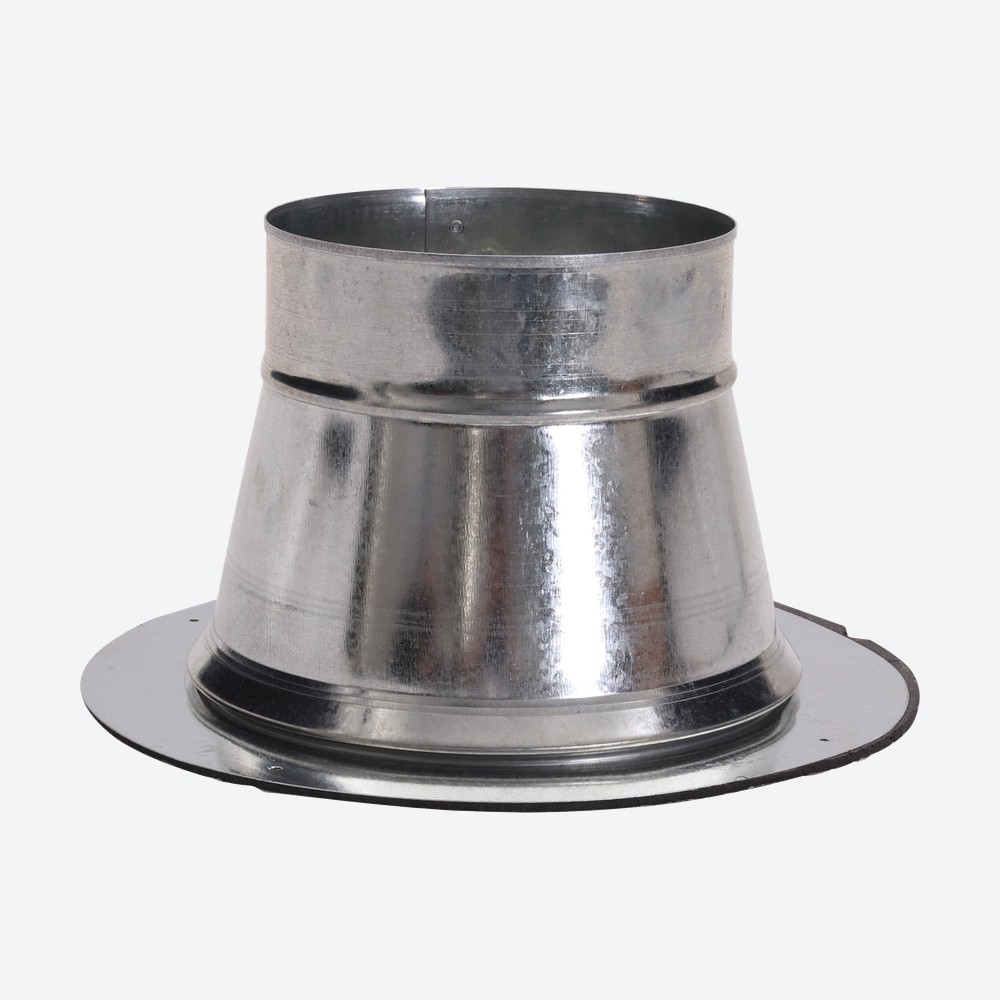

#800G Air-Tite Conical
#800G Air-Tite Conical
Product Specifications
Material
ASTM-A653 CS Type B Galvanized Steel G-30 Coating LFQ Chemical Treatment
Assembly
Continuous weld longitudinal seam for no air leakage. Meets SMACNA Gauge Standards – 10″ W.G. Static Pressure
Available Options
Gasket
Fire Retardant Polyethylene Foam with Double Stick 3M Tape UL94 HF-1
Damper
Standard Regulator or Raised Quadrant
Available Raised Quadrants
Duro Dyne # 7210 ESO38R-150 3/8″ Standoff Regulator for 1 1/2″ wrap
or
Duro Dyne # 7206 ESO14R-200 1/4″ for 2″ wrap. Nylon grommets are installed on each side of the collar to reduce air loss.
Scoop
Available to aid in air flow
